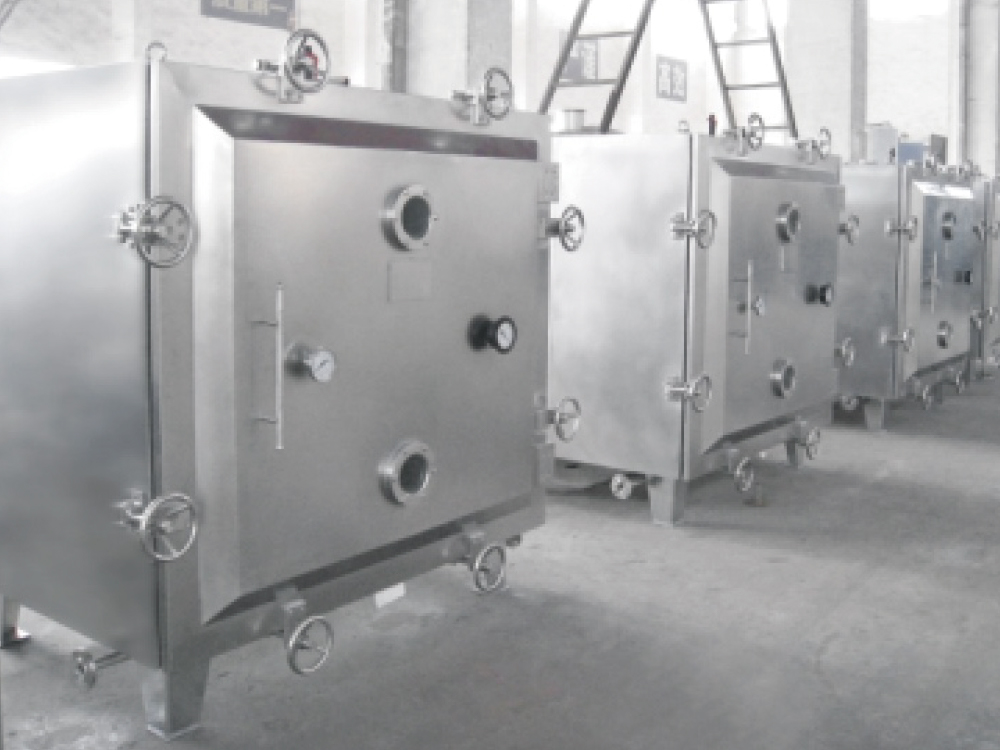

FZG / YZG Vacuum Dryer

The FZG/YZG vacuum dryer lowers the boiling point of material solutions under vacuum, which increases the heat transfer driving force of the evaporator. This allows the evaporator to achieve the same drying effect with a smaller heat transfer area. Heat sources for the drying process can include low-pressure steam or waste heat steam, and, upon special request, water or thermal oil heating can be custom-designed. The dryer is suitable for thermally sensitive materials that decompose, polymerize, or deteriorate at high temperatures. Materials can be sterilized before drying, and impurities are prevented from mixing in during the process. As a static vacuum dryer, the shape and integrity of the dried material remain intact.

Inquiry

Next: SZG Double Cone Rotary Vacuum Dryer PREV: DW Single-Layer Belt Dryer

Product Details

Working Principle
Under vacuum conditions, the boiling point of the material is reduced, enhancing heat transfer efficiency. The evaporator provides heat to promote moisture evaporation from the material. The drying process occurs in a sealed vacuum chamber, preventing contamination. For heat-sensitive materials, the low-temperature vacuum environment allows drying without decomposition or structural damage.

Key Features
Efficient vacuum drying with reduced heat transfer area requirements.

Suitable for heat-sensitive materials prone to decomposition, polymerization, or deterioration.

Material sterilization can be performed prior to drying.

Static vacuum design preserves the shape and integrity of the material.

Flexible heat source options: low-pressure steam, waste heat, or custom water/thermal oil heating.

Product Parameters

Item	Model	YZG-600	YZG-1000	YZG-1400	YZG-1500
Inner size of drying chamber	mm	600×976	1000×1527	1400×2054	1500×1400×1220
Outer size of drying chamber	mm	1135×810×1020	1693×1190×1500	2386×1675×1920	1513×1924×2060
Layer amount of the baking frame	Layer	4	6	8	8
Distance between layers	mm	81	102	102	122
Size of baking disk	mm	310×600×45	460×640×45	460×640×45	460×640×45
Qty of baking disk	Layer	4	12	32	32
Pressure is used in the pipe of the baking disk		≤0.784(8kg/cm²)	≤0.784	≤0.784	≤0.784
The temperature of the baking frame to be used	°C	35~150	35~150	35~150	35~150
Vacuum is maintained in the chamber	Mpa	≤0.098(1kg/cm²)	≤0.098	≤0.098	≤0.098
When use condenser, a model, and the power of the vacuum pump		2X-15A 2KW	2X-30A 3Kw	2X-70A 5.5Kw	2X-70A 7KW
When not use condenser, model, and the power ofthe vacuum pump		SK-0.8 2.2Kw	SK-3 5.5Kw	SK-3 5.5Kw	SK-3 5.5Kw
Weight of drying chamber	Kg	250	800	1400	2100
