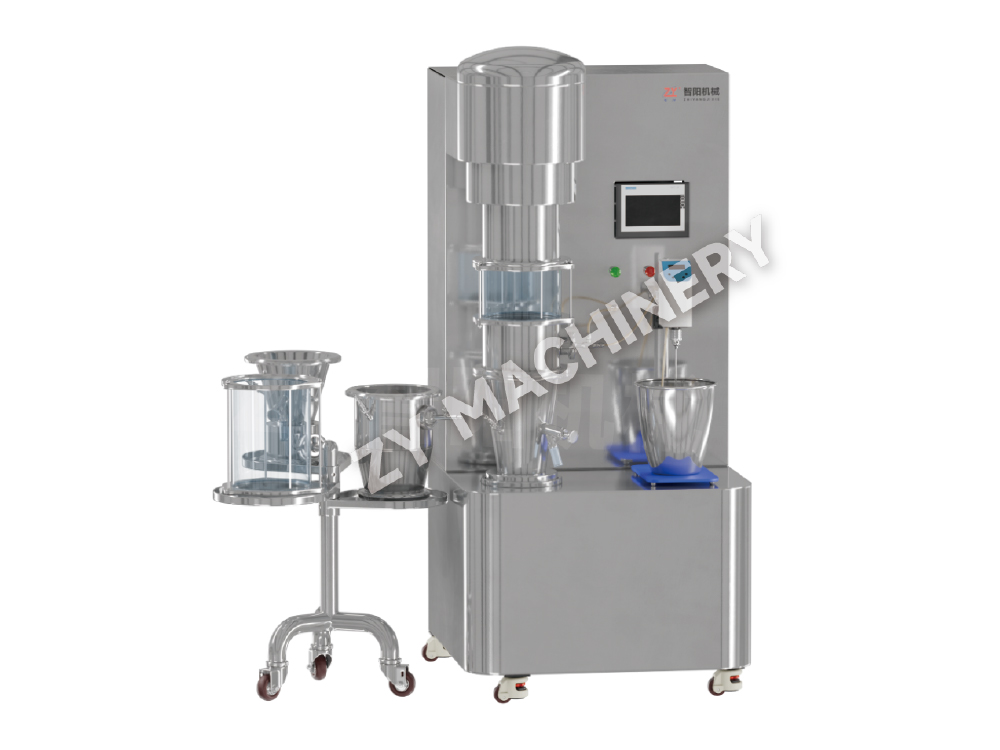

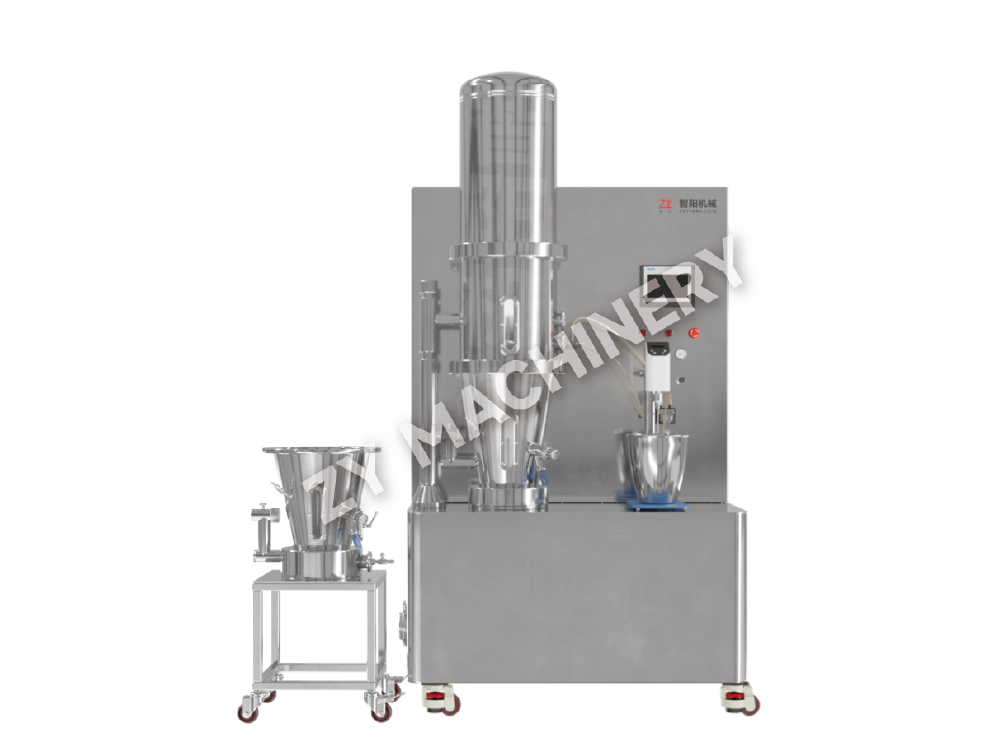

DLP R&D Multi-Functional Fluid-bed Granulation & Coating Lab Machine

The DLP R&D multi-functional fluidized bed machine integrates multiple functions, including top-spray, bottom-spray, and side-spray operations. It combines mixing, drying, granulation, micro-pellet formation, and coating in a single unit. This versatile machine is widely used in the pharmaceutical, food, and chemical industries for laboratory research and experimental development.

Inquiry

Next: BGB R&D High-Efficiency Film Coating Lab Machine PREV: JWB Extrusion-Rounding Coating Machine

Product Details

Working Principle
The machine comprises an inlet air heating system, fluidized bed system, top-spray, bottom-spray, side-spray units, and an exhaust dust collection system. The top-spray system is used for granulation, the bottom-spray system for coating micro-pellet powders, and the side-spray system for micro-pellet formation. All these functions are achieved within the same equipment, allowing users to select the required operation according to their experimental process.

Key Features
Multi-functional design supports granulation, coating, micro-pellet production, and drying within a single unit.

Complete top, bottom, and side spray systems provide flexibility to meet various experimental needs.

Fully automated operation with PLC control; all process parameters can be pre-set and executed automatically.

Process parameters can be recorded and printed for traceability, ensuring reliable documentation.

Designed for laboratory research and R&D purposes, facilitating small-batch experimentation and formulation testing.

Compliant with GMP standards, ensuring safety, hygiene, and reproducibility in pharmaceutical experiments.

Compact structure, easy to operate, clean, and maintain.

Product Parameters

Item		Model	DLP -MINI	DLP-I	DLP-II	DLP-III	DLP-IV
Capacity		g/batch	100~500	500~1000	1000~1500	1500~3000	2500~5000
Power of the fan		Kw	0.7	1.5	2.2	3	4
Power of the electrical heater		Kw	1.5	4.5	4.5	4.5	6
Compressed air	Consumption	M³/h	0.2	0.3
Compressed air	Pressure	Mpa	0.4~0.6
Weight of the machine		Kg	220	400	560	600	720
