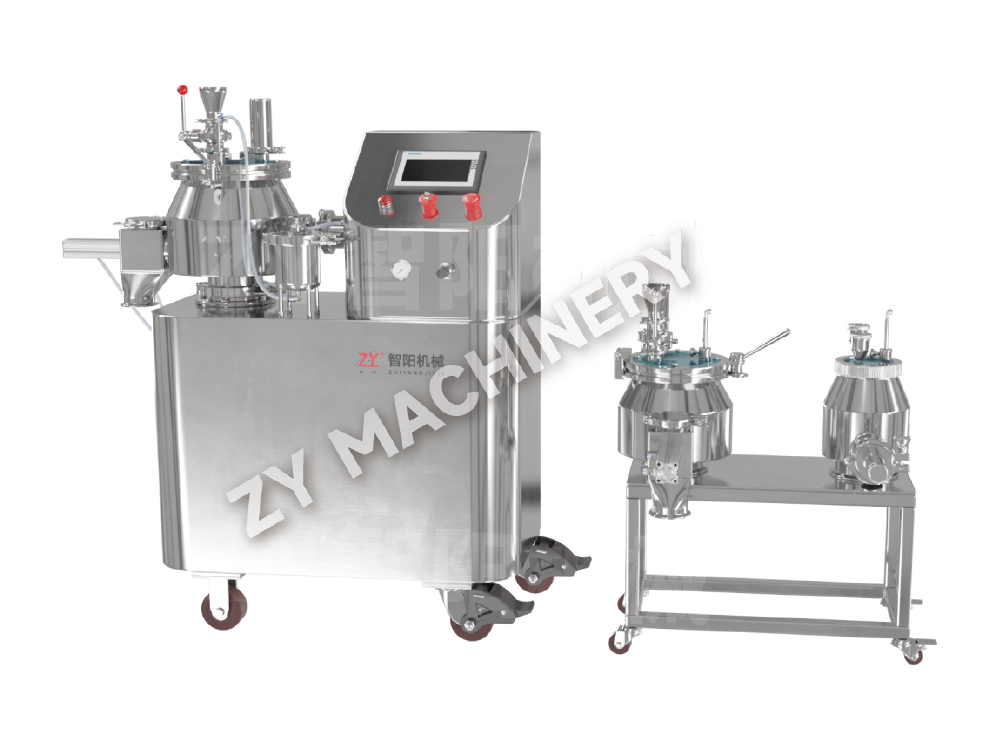

GHL R&D Interchangeable Bowl Wet Granulation Lab Machine

Working Principle
Materials are added into the granulation bowl, where a specially designed mixing paddle induces multi-dimensional shear and flow. A spraying system introduces a binder, forming soft, ribbon-like material. The combination of the mixing paddle and cutter blades continuously stirs and cuts the material, producing uniform wet granules suitable for downstream processing.

Key Features
One main unit can accommodate multiple bowls of different volumes to meet various material and batch requirements.

Combines mixing and granulation in a single step with high granule quality and minimal cross-contamination.

Ideal for laboratory research, pilot production, and small- to medium-scale manufacturing.

Equipped with safety interlocks for reliable and secure operation.

Horizontal design ensures structural rigidity, simple maintenance, and easy cleaning.

All parts in contact with materials are made of 304 or 316L stainless steel, and the machine body is fully enclosed.

Granulation process is sealed; includes a curved mixing paddle and 2–5 cutter blades for optimal granule formation.

Dual frequency inverters control paddle and cutter speed, with automatic timing for process control.

Offers standard electrical control or optional touch screen PLC control to suit different user preferences.

Product Parameters
